3M-AOV WiFi Dome Module

AOV Intelligent Dual-Light Dome Module

HX6201SW5-3M-AOV-LITE-MF-B

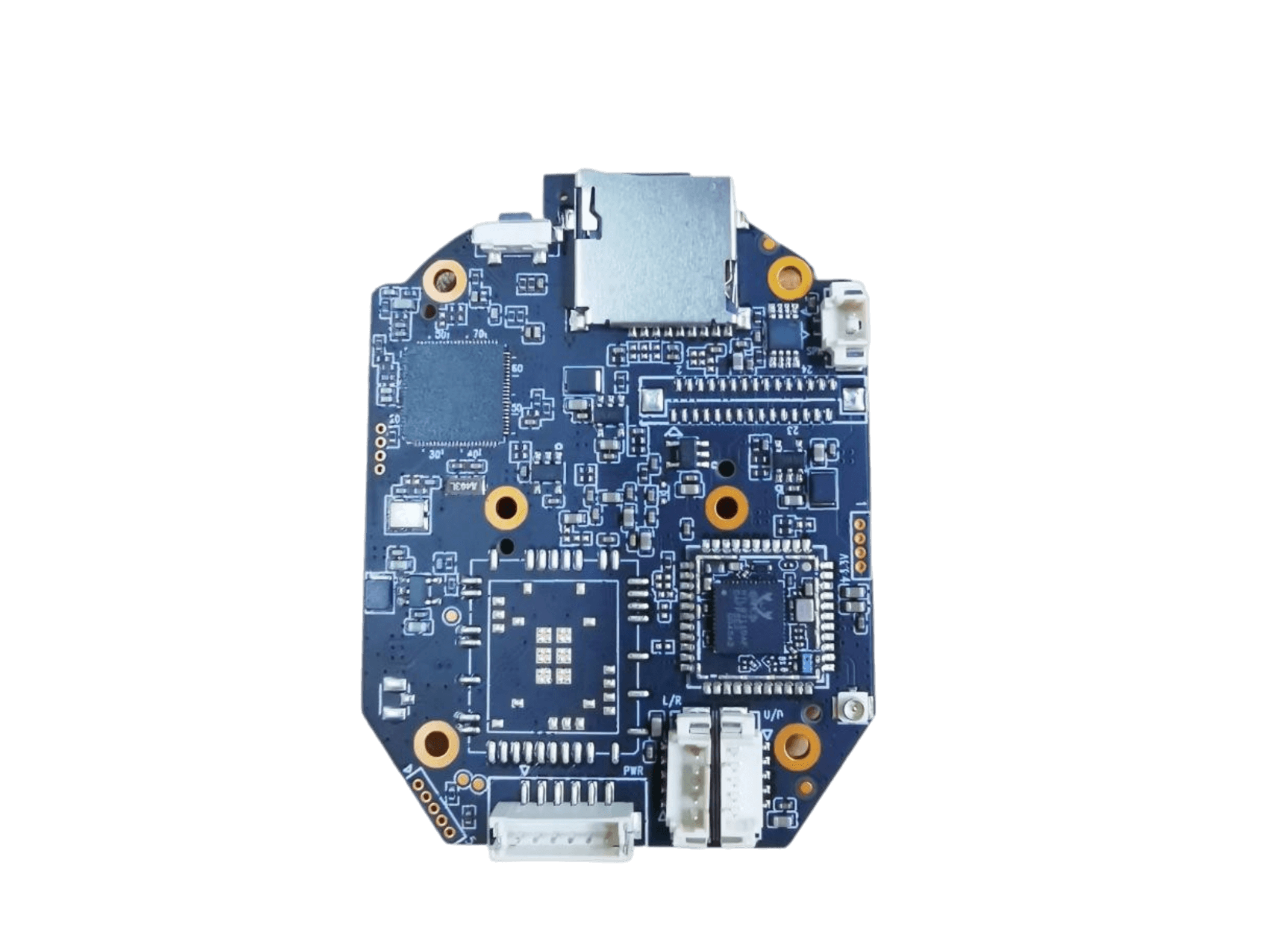

1、Appearance

2、Introduction

The 3MP AOV intelligent dual-light module, featuring an embedded LINUX system and a 3MP low-light sensor, delivers a max resolution of 2304×1296. It supports H.265/G.711 encoding and customizable bitrates. In AOV mode, it records at 1fps (0.15W power), switching to 15fps under full activation.Storage options include TF cards,FTP server and cloud storage, with two-way audio and optional Dual-band Bluetooth WiFi(2.4G/5.8G).

Equipped with human detection , and detection up to 30 meters. Intelligent dual-light, it automatically activates infrared monitoring in AOV mode at night, switching to warm light full-color imaging with full frame rate upon target detection.

3、Main Characteristics

Ø  3MP( 2304x1296) High sensitivity, high S/N CMOS image sensor.

Ø  H265 compression algorithm, support dual stream.

Ø  Enable mobile phone monitoring with CamHipro and show battery stats on APP.

Ø  Support multiple network protocols: TCP/IP,HTTP,TCP,FTP,UDP,ARP,DHCP,DNS ,etc.

Ø  Support Human Detection Alarm(max 30m Range) and human tracking.

Ø  Support alarm recording to TF card(128G) /FTP server or cloud storage (requires purchasing).

Ø  Supports AOV mode recording with 1fps or 1frame/2Sec.

Ø  Supports 5-user simultaneous browsing at most.

Ø  Support mobile phone downloading and playback TF card recordings.

Ø  Supports customizable detection zones and human-form sensitivity settings.

Ø  Supports Dual-band Bluetooth WiFi(2.4G/5.8G).

4、Parameter
