3MY2-AOV 4G Dual-Lens Module

AOV Intelligent Dual-Light Dual-Lens Module

HX6301S-3MY2-AOV-CAT1-MF-B

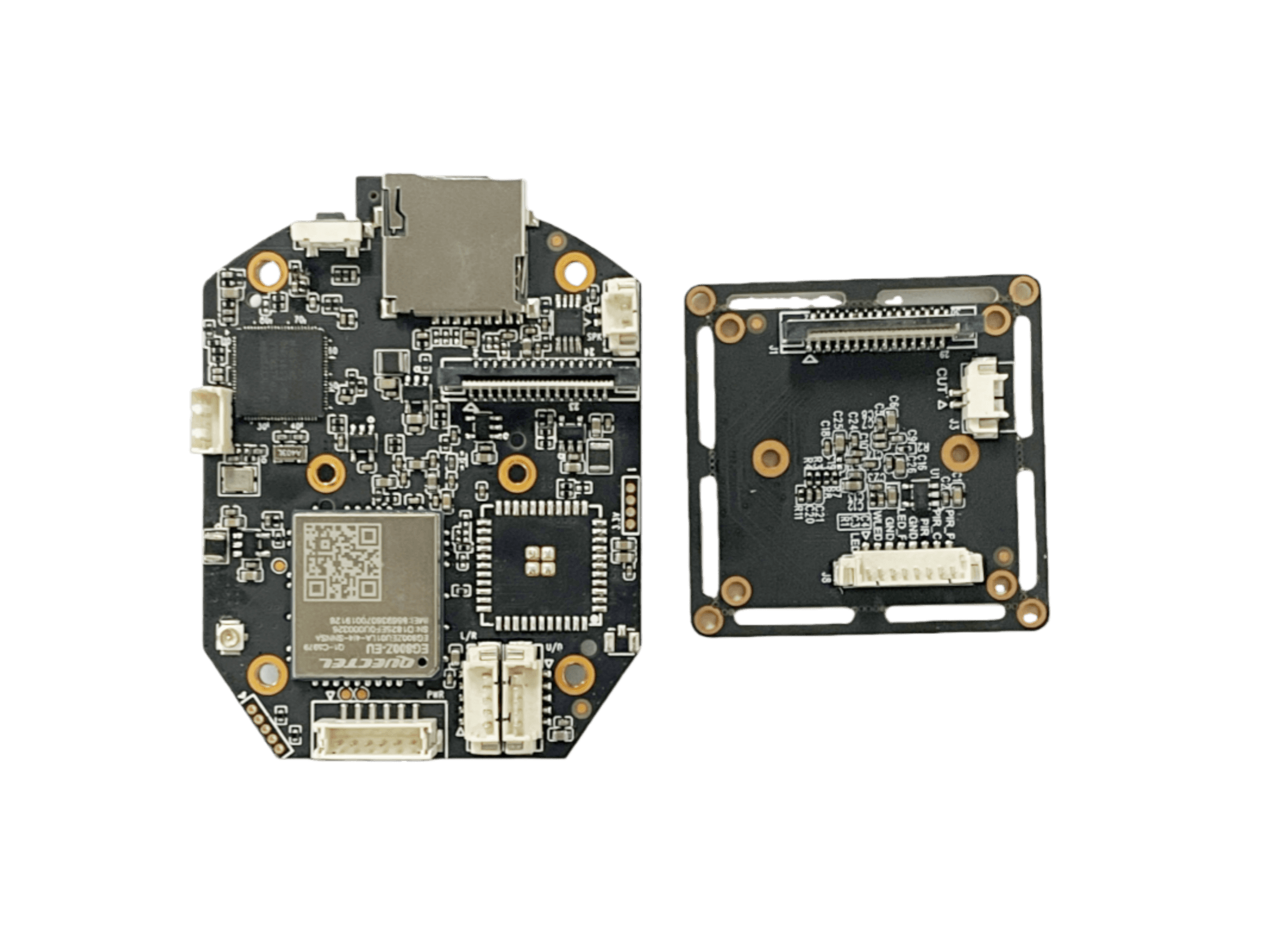

1、Appearance

2、Introduction

The 3MP AOV intelligent dual-light dual-lens AOV module, featuring an embedded LINUX system and two 3MP low-light sensor, delivers a max resolution of 2304×1296. It supports H.265/G.711 encoding and customizable bitrates. In AOV mode, it records at 1fps (0.15W power), switching to 15fps under full activation. Storage options include TF cards and cloud storage, with two-way audio and optional 4G (EU/US/JP variants).

Equipped with human detection, and detection up to 30 meters. Intelligent dual-light, it automatically activates infrared monitoring in AOV mode at night, switching to warm light full-color imaging with full frame rate upon target detection.

3、Main Characteristics

Ø  3MP( 2304x1296) High sensitivity, high S/N CMOS image sensor *2.

Ø  H265 compression algorithm, support dual stream.

Ø  Dual-lens: wide-angle for overview, telephoto for zoom-in tracking.

Ø  Enable mobile phone monitoring with CamHipro and show battery states on APP.

Ø  Support multiple network protocols: TCP/IP,HTTP,TCP,FTP,UDP,ARP,DHCP,DNS ,etc.

Ø  Support Human Detection Alarm(max 30m Range) and human tracking.

Ø  Support alarm recording to TF card(128G) /FTP server or cloud storage (requires purchasing).

Ø  Supports AOV mode recording with 1fps.

Ø  Supports 5-user simultaneous browsing at most.

Ø  Support mobile phone downloading and playback TF card recordings.

Ø  Supports customizable detection zones and human-form sensitivity settings.

Ø  Supports 4G EU/US/JP .

4、Parameter
