5MP 10x Zoom Module(With Lens)
5MP 10X Zoom Module
1.Appearance
2.Brief introduction
The 5MP Auto focus HD 38 camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
3.Main characteristics
Ø High sensitivity, high S/N CMOS image sensor
Ø Using GK7205V300
Ø The highest pixel can reach 500W, and the highest resolution can reach 5MP(2560x1920)
Ø H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring
Ø Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on.
Ø Support ONVIF protocol
Ø Support manufacturer DDNS and third-party DDNS
Ø Support sending alarm images via email
Ø Support uploading alarm pictures and alarm videos to FTP server
Ø Support timed capture of images to FTP server
Ø Support both static IP and dynamic IP (DHCP)
Ø Support P2P Plug and Play
Ø Support IE, Google, and Firefox browsers
Ø Support up to 6 users browsing simultaneously (3 users per stream)
Ø Provide motion detection alarm function (area, sensitivity can be set)
Ø Support UPNP automatic port mapping
Ø Support Micro SD card, max 128GB Micro SD card
Ø Support PC client to download SD card recording
Ø Support mobile phone downloading and playback SD card recordings
4.Parameter
| HX5001S-5M5D-38-AF11 | |
| operating system | Embedded LINUX |
| main processor | GK7205V300 |
| image sensor | 1/2.8”CMOS sensor |
| IRCUT | support |
| Lens | 4.7-47mm auto focus lens |
| Compression standard | |
| Video compression algorithm | Support H.265, H.264 High Profile,H.264 Main Profile and H.264 Baseline |
| Audio compression algorithm | G.726/G.711 |
| Compressed transmission stream | 32Kbps-6144bps, can self-defining, default 1536Kbps |
| Image | |
| Maximum image size | 5MP(2560x1920) |
| definition | First stream: 5MP(2560x1920), 4MP(2560x1440) can set |
| Second stream: Q720P(800x600 or 640x480), QQ720P(800x448 or 640x352) can set | |
| Video frame rate | 12.5fps(50HZ), 15fps(60HZ) |
| Character overlay | Support OSD name, time and date information overlay |
| Image Settings | Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable |
| Network function | |
| Storage function | Support Max 128GB Micro SD card storage, support timed recording |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| Alarm linkage | Send alarm pictures to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server |
| Network Protocol | Support TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，NTP，UPNP，RTSP |
| Access Protocol | Support ONVIF 2.4 protocol |
| Interface | |
| Audio input | 1CH input, support MIC input/linear input (requires tail line support) |
| Audio output | 1CH output, support connecting headphones or Amplifier (requires tail line support) |
| 485 Interface | 1CH 485 |
| Network interface | 10Base-T/100Base-TX Ethernet interface |
| WiFi 802.11b/g/n Wireless network interface | |
| General specifications | |
| Size | 38x38x25mm (length, width and height) |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power Supply | DC12V 2A |
| Power consumption | 1.8W |

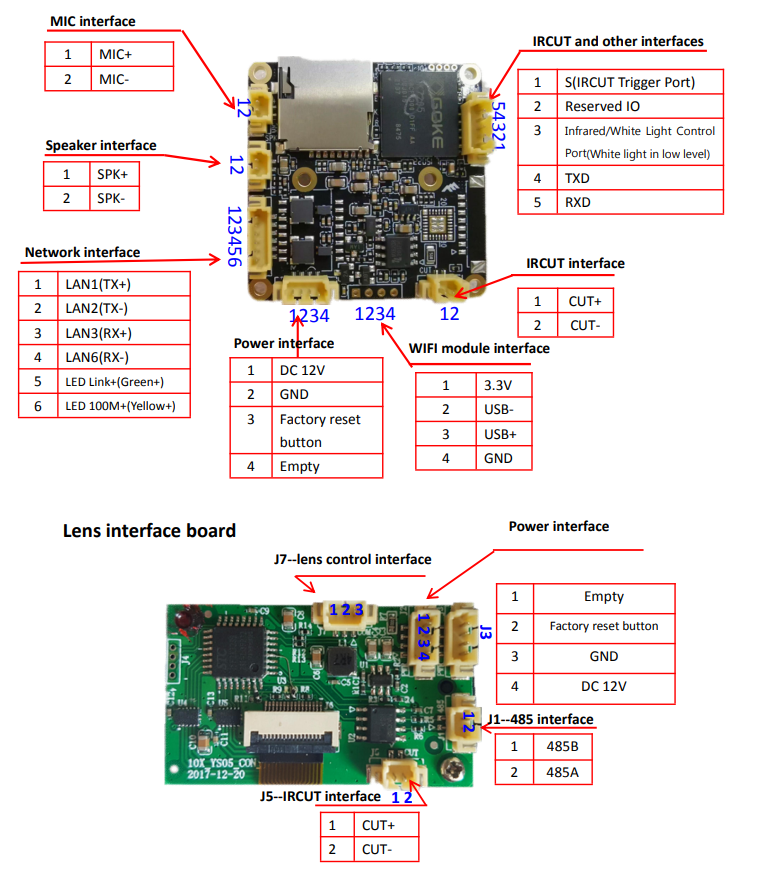

5.Wiring Definition
Important Notice:
J3 interface is connected to power interface of main board,
J5 IRCUT interface is connected to IRCUT interface of main board ,
J7 lens control interface is connected to control interface of main board .
These three interfaces are already connected by default, please do not change the wiring method without authorization.
