2MP+2MP Low-Power Dual-Lens Module(4G Cat1UA)
2MP+2MP Low-Power Dual-Lens Module(4G Cat1UA)

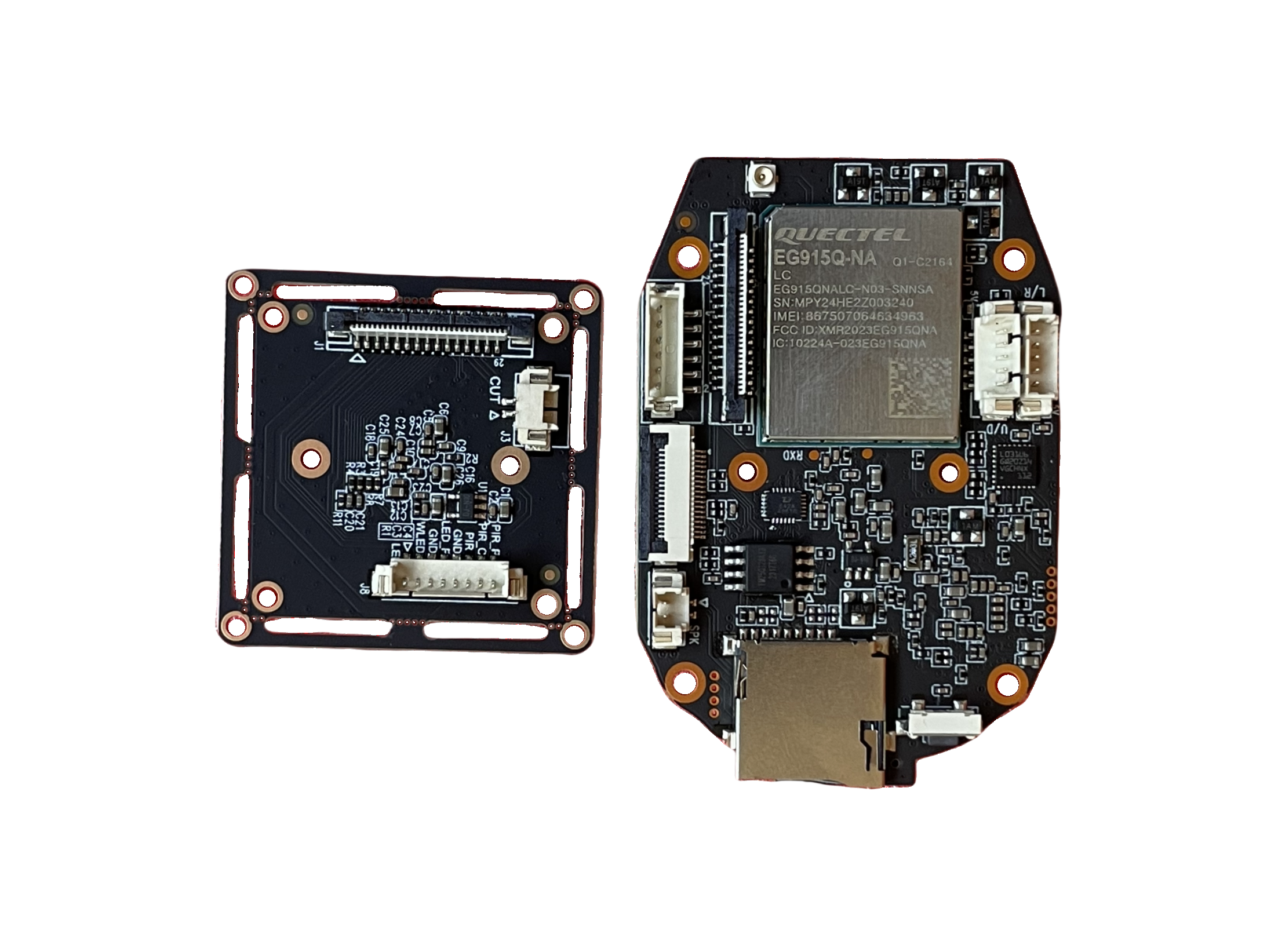

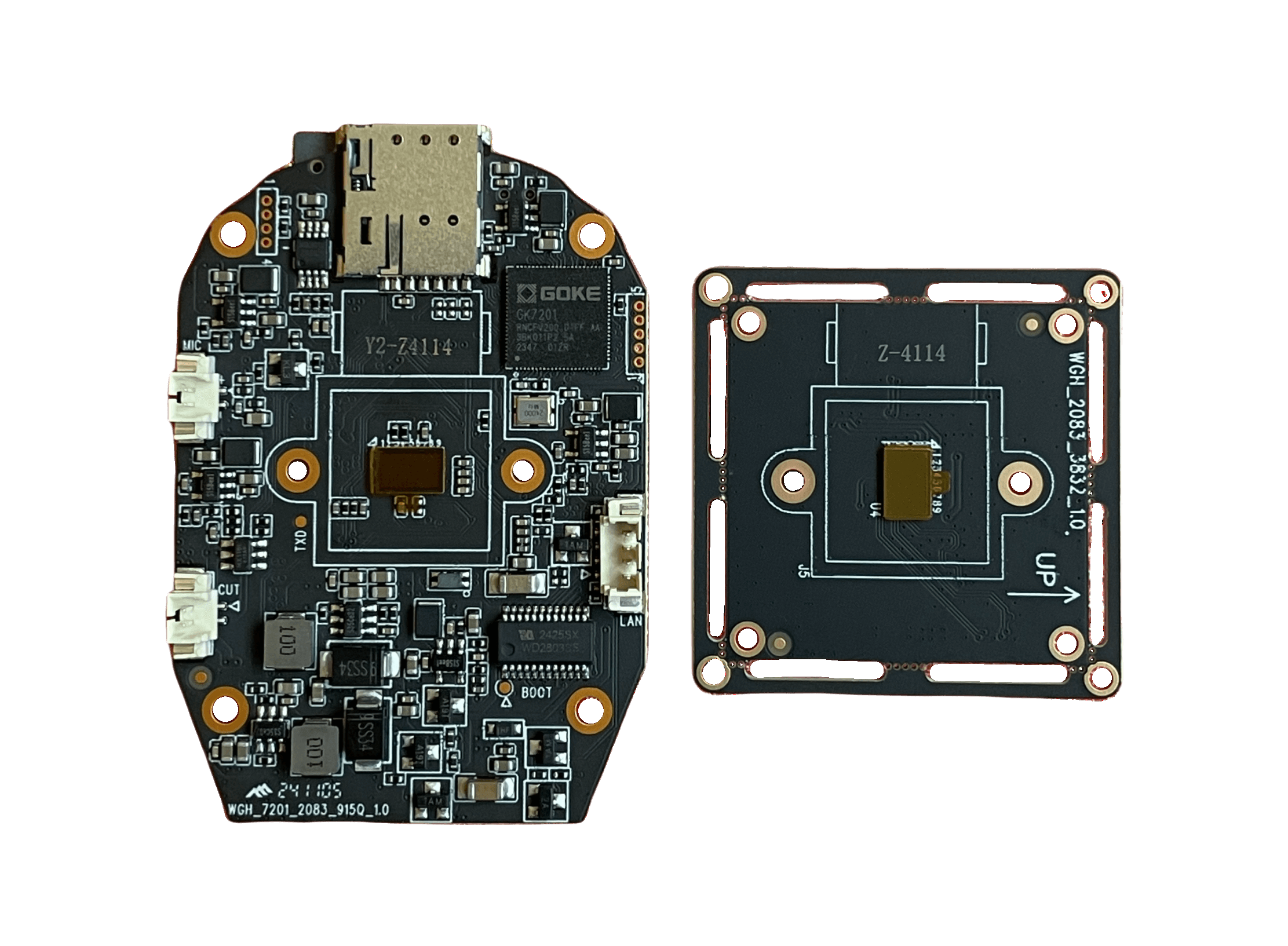

1. Appearance
2. Brief introduction
The 2MP Dual HD camera module adopts a SOC and two CMOS sensors, with extremely low power consumption and super stability; Support H.265 compression algorithm, support camera quick startup, remote wake-up from mobile phones and PIR alarm wake-up. When no user connection and alarm triggering, the camera is in standby mode, effectively extending the battery life of the camera.
3.Main characteristics
Ø Two high sensitivity, high S/N CMOS image sensors
Ø Using GK7201V200
Ø The pixel of each sensor can reach 200W (1920 x 1080)
Ø Optimized H.265 compression algorithm, supporting mobile phone monitoring
Ø Support APP remote wake-up and PIR alarm wake-up
Ø Support solar charging, effectively extending the usage time of camera batteries
Ø Support the camera works continuously (needs to be set on the APP)
Ø Support PIR sensitivity settings (high, medium, and low levels)
Ø Support setting of alarm recording duration (alarm recording duration can be set to 15 seconds and 30 seconds)
Ø Support Micro SD card, max 128GB Micro SD card
Ø Support playback SD card recordings by mobile phone
Ø Support humanoid tracking
4. Parameter
| HX4202S-1080Y2-CAT1LUA-MF-B | |
| operating system | Linux |
| main processor | GK7201V200 |
| image sensor | Two 1/3” Ultra low lux CMOS sensor |
| IRCUT | support |
| 4G module | US CAT1 4G module(QuectelEG915-NA) |
| Compression standard | |
| Video compression algorithm | H.265 Main Profile |
| Audio compression algorithm | G.711 |
| Compressed transmission stream | default 768Kbps |
| Image | |
| Maximum image size | 200W(1920x1080) |
| definition | First stream of bullet camera module: 200W(1920 x 1080),first stream of PTZ camera module: 200W(1920 x 1080) |
| Second stream of bullet camera module: Q720P(640x360),second stream of PTZ camera module: Q720P(640x360) | |
| Video frame rate | 15fps(50HZ), 15fps(60HZ) |
| Character overlay | Support OSD name, time and date information overlay |
| Image Settings | Brightness, contrast, saturation, up and down reversal, left and right mirror adjustable |
| Camera function | |
| Storage function | Support Max 128G Micro SD card storage, Support alarm and scheduled recordings storage |
| Alarm linkage | Support alarm recordings to SD Card |
| Alarm recording duration | Support setting of alarm recording duration (15 seconds and 30 seconds can be set, default is 15 seconds) |
| Continuous working mode | support the camera working continuously (needs to be modified by the APP) |
| PIR sensitivity | Support PIR sensitivity settings (high, medium, and low levels) |
| Solar charging | support solar panel charging |
| Camera wake-up | support remote wake-up of mobile phones and PIR alarm wake-up |
| Network Protocol | Support TCP/IP, HTTP, TCP, UDP, ARP, DHCP, DNS, NTP |
| Interface | |
| Audio input | 1CH MIC Input |
| Audio output | 1CH Output |
| Network interface | Support US version 4G module |
| General specifications | |
| Power Supply | External power supply DC5V 2A, battery 3.76-4.2V |
| Power consumption | 1.5W |

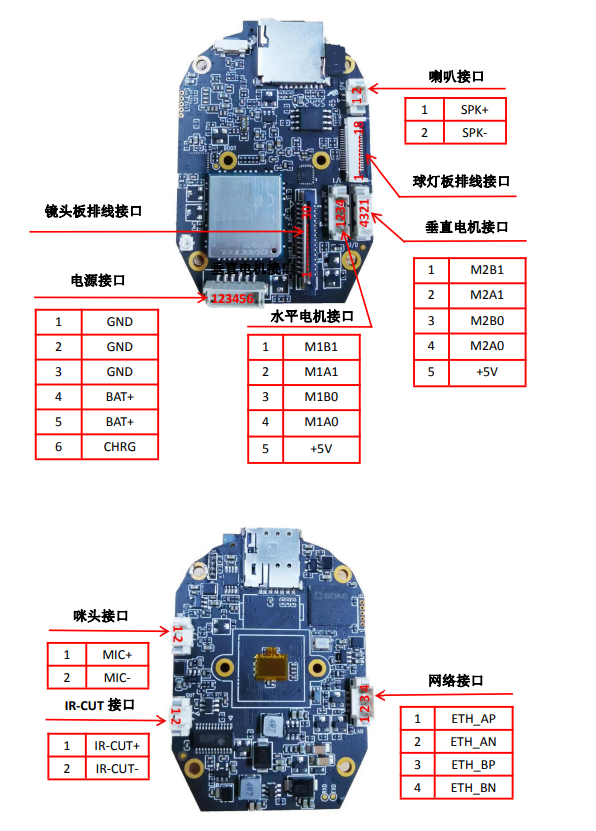

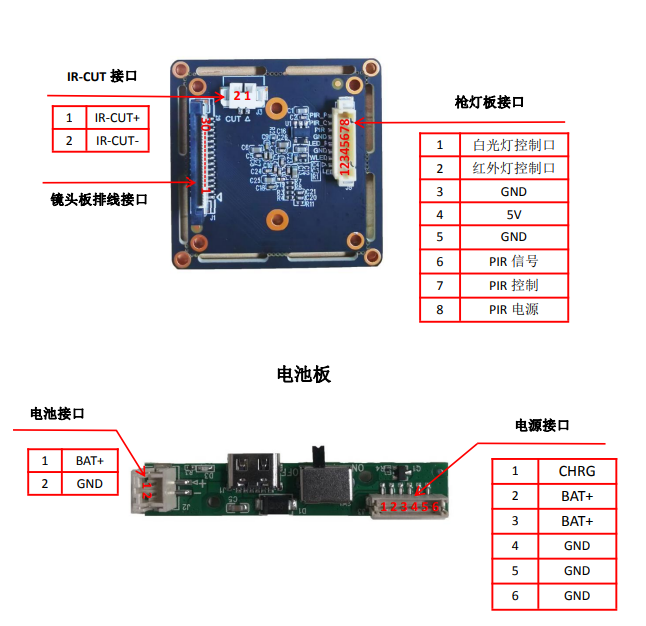

5. Wiring Definition
