HX4202S-1080Y2-CAT1LEG-MF-B 2MP Dual HD Camera Module

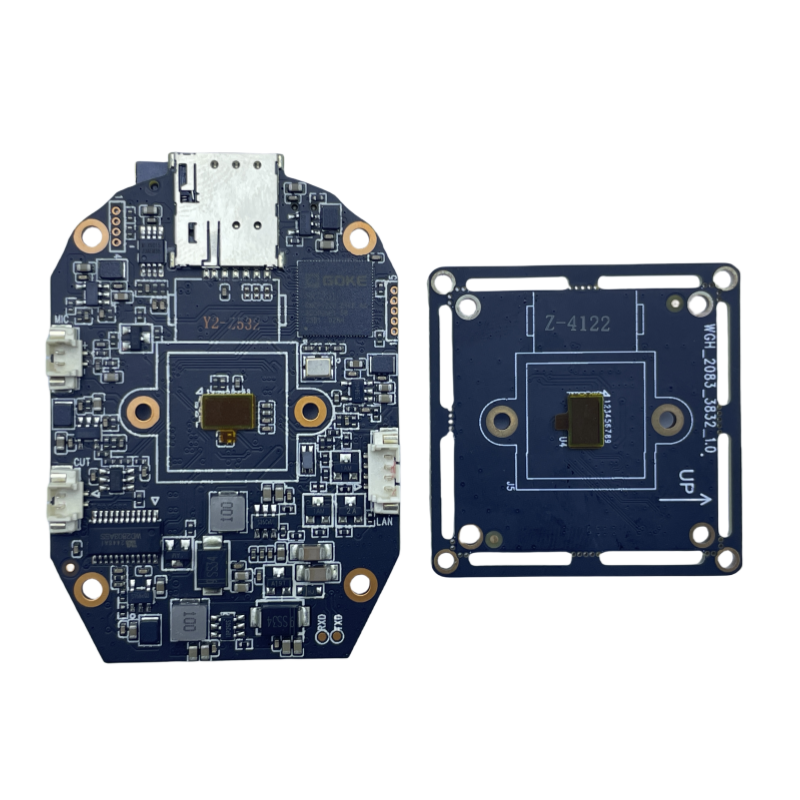

Appearance


Brief introduction

The 2MP Dual HD camera module adopts a SOC and two CMOS sensors, with extremely low power consumption and super stability; Support H.265 compression algorithm, support camera quick startup, remote wake-up from mobile phones and PIR alarm wake-up. When no user connection and alarm triggering, the camera is in standby mode, effectively extending the battery life of the camera.



Main characteristics

Ø  Two high sensitivity, high S/N CMOS image sensors

Ø  Using GK7201V200

Ø  The pixel of each sensor can reach 200W (1920 x 1080)

Ø  Optimized H.265 compression algorithm, supporting mobile phone monitoring

Ø  Support APP remote wake-up and PIR alarm wake-up

Ø  Support solar charging, effectively extending the usage time of camera batteries

Ø  Support the camera works continuously (needs to be set on the APP)

Ø  Support PIR sensitivity settings (high, medium, and low levels)

Ø  Support setting of alarm recording duration (alarm recording duration can be set to 15 seconds and 30 seconds)

Ø  Support Micro SD card, max 128GB Micro SD card

Ø  Support playback SD card recordings by mobile phone

Ø  Support humanoid tracking





Parameter

HX4202S-1080Y2-CAT1LEG-MF-B

operating system

Linux

main processor

GK7201V200

image sensor

Two 1/3” Ultra low lux CMOS   sensor

IRCUT

support

4G module

EU CAT1 4G module (Quectel   EG800G-EU)

Compression standard

Video compression algorithm

H.265 Main Profile

Audio compression algorithm

G.711

Compressed transmission stream

default 768Kbps


Maximum image size

200W(1920x1080)

definition

First   stream of bullet camera module: 200W(1920 x 1080),first stream of PTZ camera   module: 200W(1920 x 1080)

Second   stream of bullet camera module: Q720P(640x360),second stream of PTZ camera   module: Q720P(640x360)

Video frame rate

15fps(50HZ), 15fps(60HZ)

Character overlay

Support OSD name, time and date   information overlay

Image Settings

Brightness, contrast,   saturation, up and down reversal, left and right mirror adjustable

Camera function

Storage function

Support Max 128G   Micro SD card storage, Support alarm and scheduled recordings storage

Alarm linkage

Support alarm recordings to SD   Card

Alarm recording duration

Support setting of alarm   recording duration (15 seconds and 30 seconds can be set, default is 15   seconds)

Continuous working mode

support the camera working   continuously (needs to be modified by the APP)

PIR sensitivity

Support PIR sensitivity settings (high, medium, and low levels)

Solar charging

support solar panel charging

Camera wake-up

support remote wake-up of mobile phones and PIR alarm wake-up

Network Protocol

Support TCP/IP, HTTP, TCP, UDP,   ARP, DHCP, DNS, NTP

Interface

Audio input

1CH MIC Input

Audio output

1CH Output

Network interface

Support EU version 4G module

General specifications

Power Supply

External power supply DC5V 2A,   battery 3.76-4.2V

Power consumption

1.5W

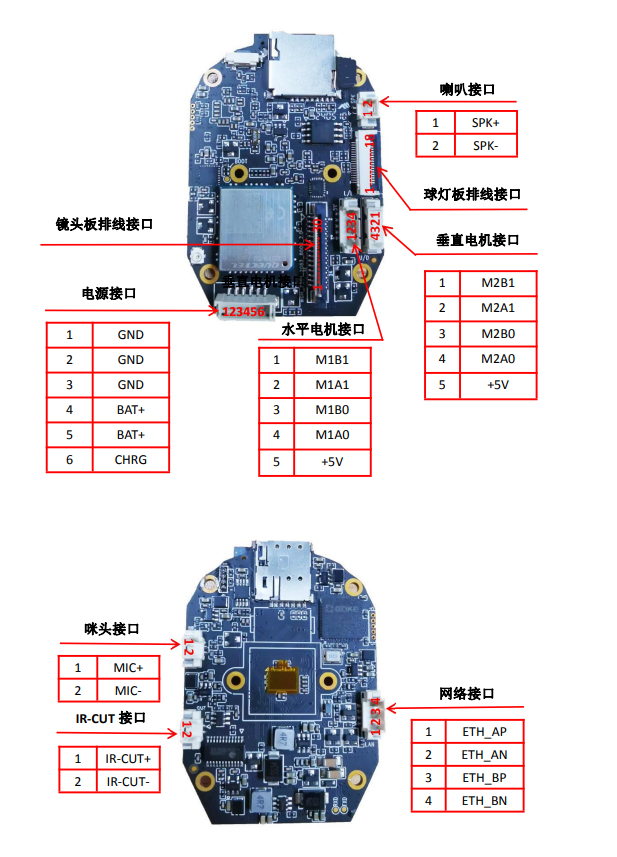

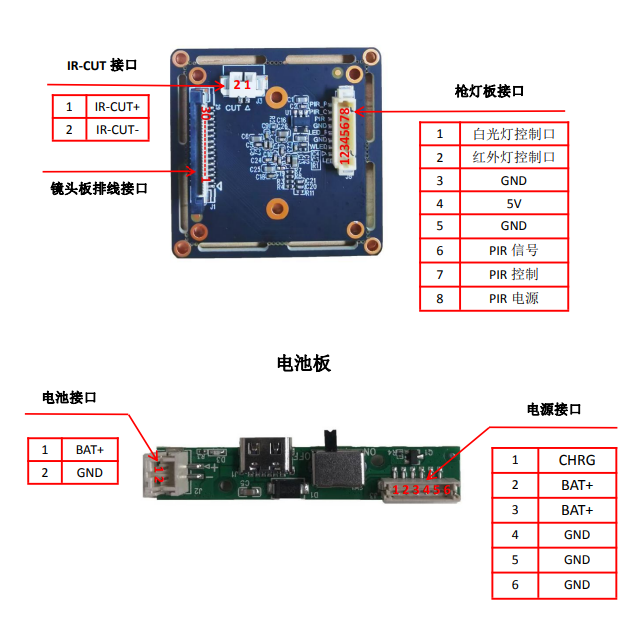

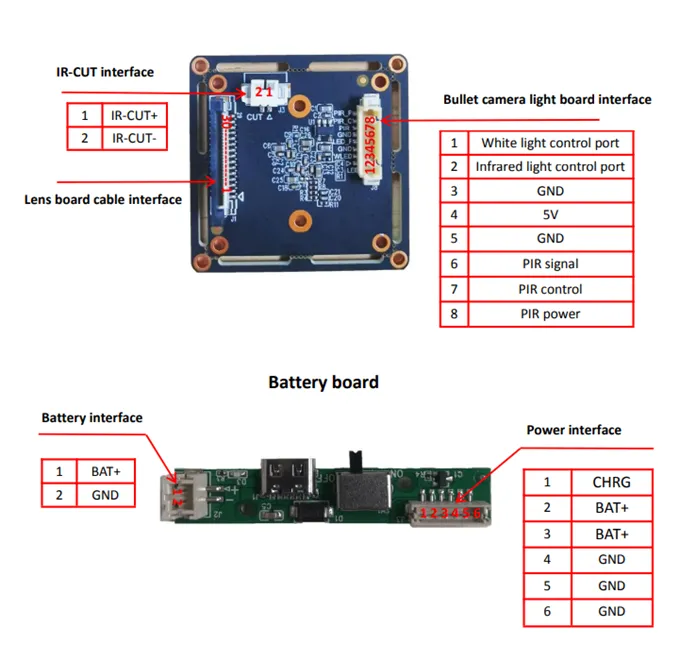

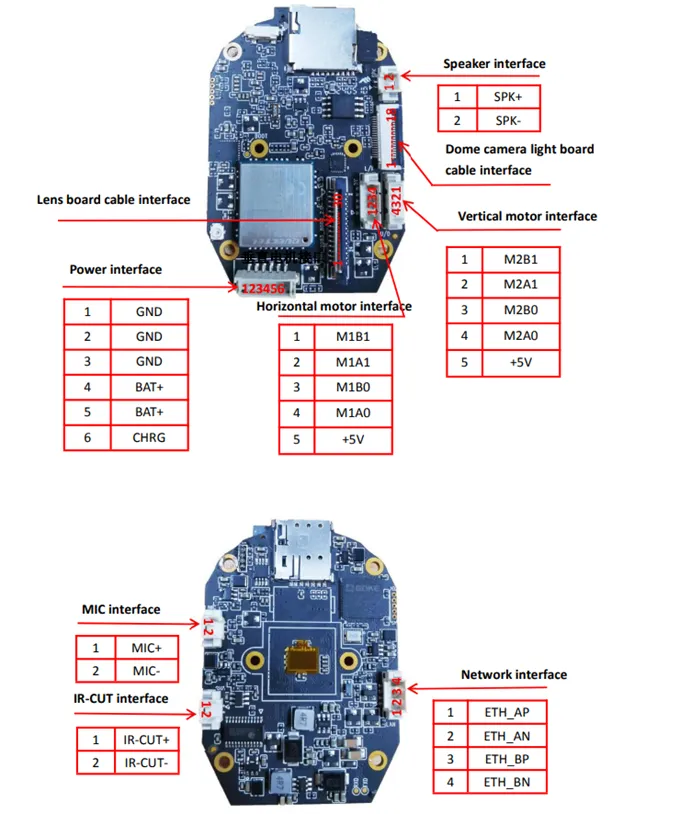

Y2 Camera Module Wiring Definition V1.0
