2MP+2MP Dual-Lens PTZ Module

HX4201SW4-1080Y2D-PT-B

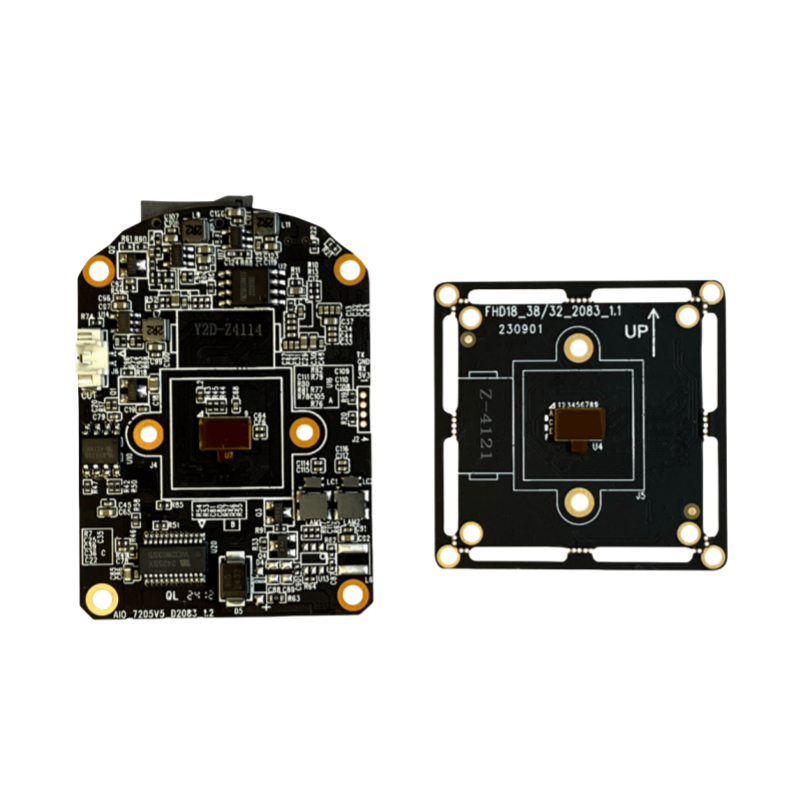

1.Appearance

2、Brief introduction

The 2MP Dual camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support remote monitoring with mobile phones.

3、Main characteristics

Ø  High sensitivity, high S/N CMOS image sensor

Ø  Using GK7201V200

Ø  The highest pixel can reach 200W, and the highest resolution can reach 1080P (1920x1080)

Ø  H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring

Ø  Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP, DHCP, DNS, DDNS, NTP, RTSP, etc.

Ø  Support alarm recordings to TF card

Ø  Support uploading alarm recordings to cloud (requires to purchase a cloud storage package)

Ø  Support both static IP and dynamic IP (DHCP)

Ø  Support up to 6 users browsing simultaneously (3 users per stream)

Ø  Provide motion detection alarm function (area, sensitivity can be set)

Ø  Support Micro SD card, max 128GB Micro SD card

Ø  Support mobile phone downloading and playback SD card recordings

 4、Parameter
