4K  Integrated Module（With 4mm Lens)

HX9101SW4-4KV-MF-4

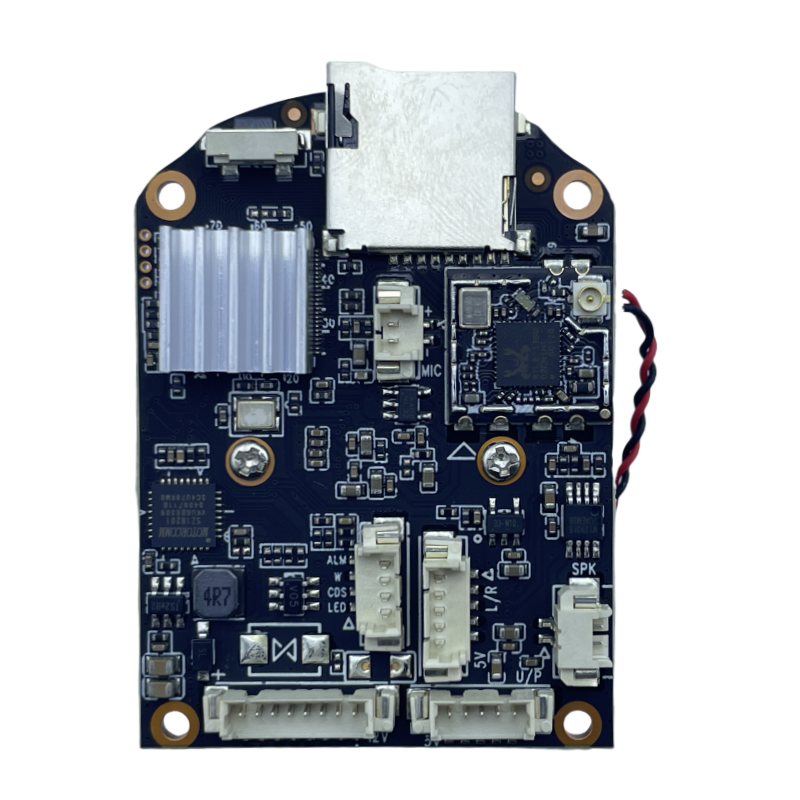

1.Appearance

2.Brief introduction

The 4K low lux HD 38 camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.

3.Main characteristics

Ø  High sensitivity, high S/N CMOS image sensor

Ø  Using T41NQ

Ø  The highest pixel can reach 800W, and the highest resolution can reach 4K(3840x2160)

Ø  H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring

Ø  Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on.

Ø  Support ONVIF protocol

Ø  Support manufacturer DDNS and third-party DDNS

Ø  Support sending alarm images via email

Ø  Support uploading alarm pictures and alarm videos to FTP server

Ø  Support timed capture of images to FTP server

Ø  Support both static IP and dynamic IP (DHCP)

Ø  Support IE, Google, and Firefox browsers

Ø  Support up to 6 users browsing simultaneously (3 users per stream)

Ø  Provide motion detection alarm function (area, sensitivity can be set)

Ø  Supports humanoid recognition, vehicle recognition, and pet recognition

Ø  Support Micro SD card, max 128GB Micro SD card

Ø  Support mobile phone downloading and playback SD card recordings

4.Parameter

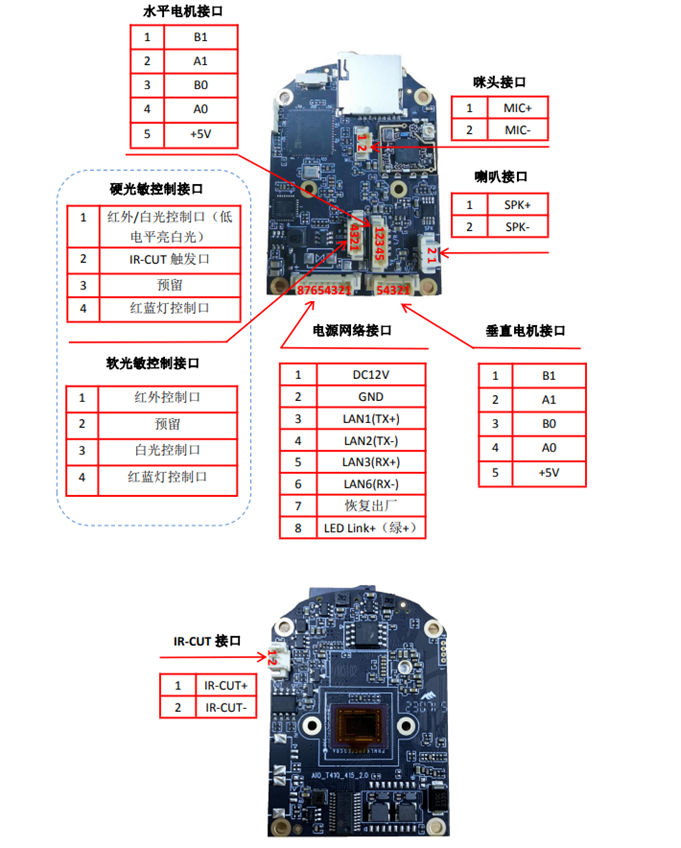

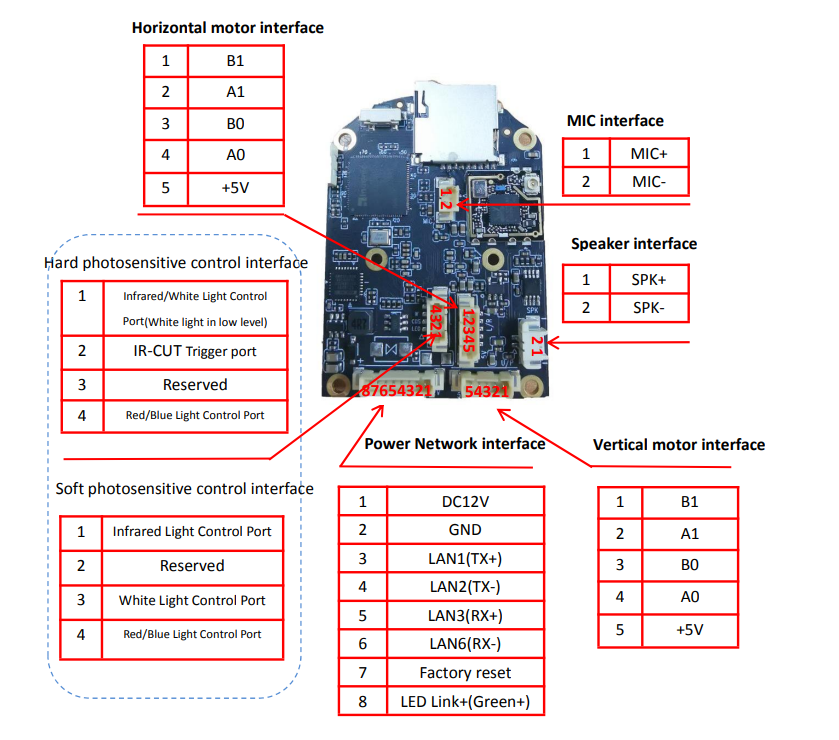

5.Wiring Definition
