5MP 38mm*38mm Module
5MP 38mm*38mm Module
HX9101S-5M11G-38-B

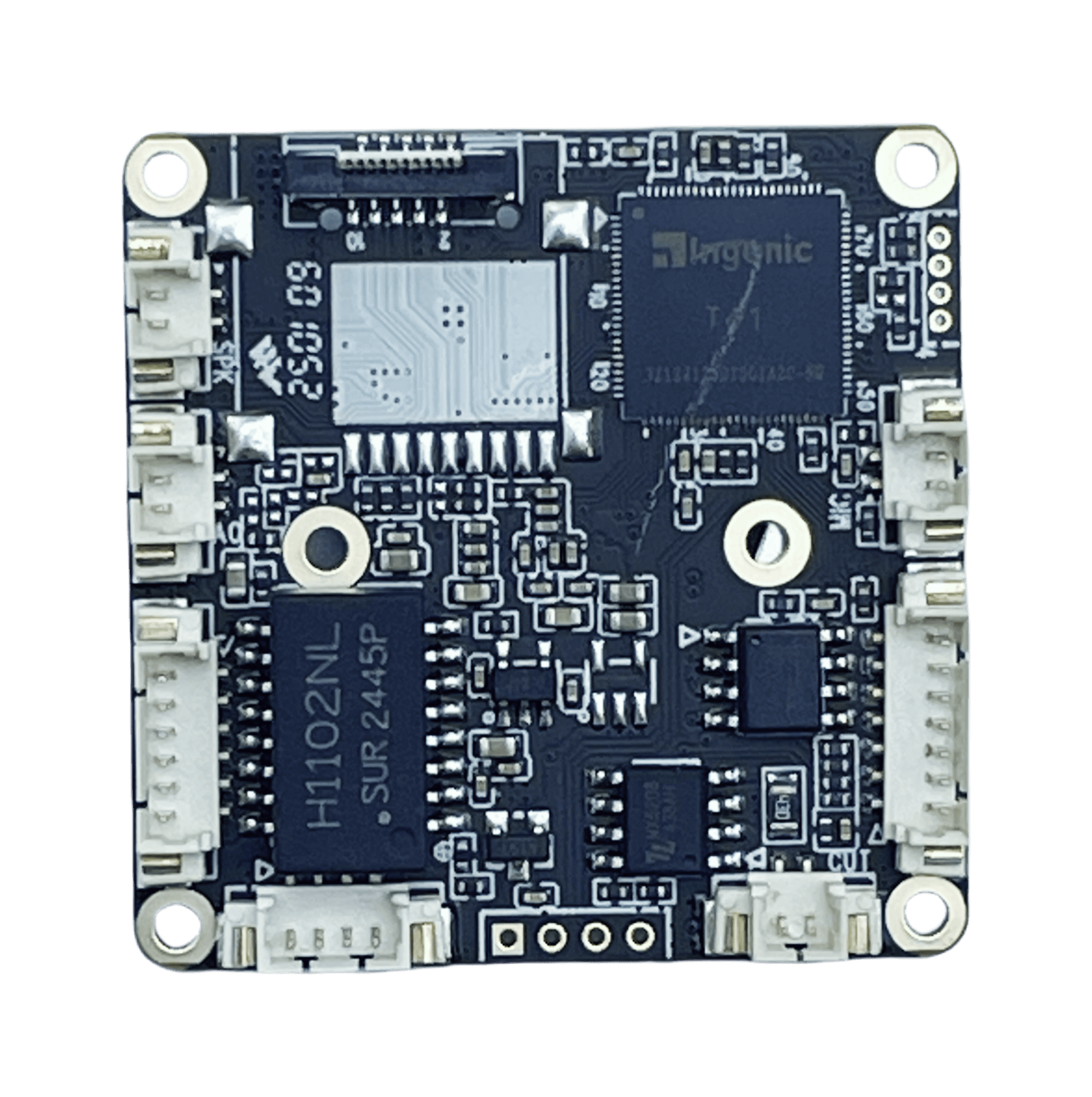

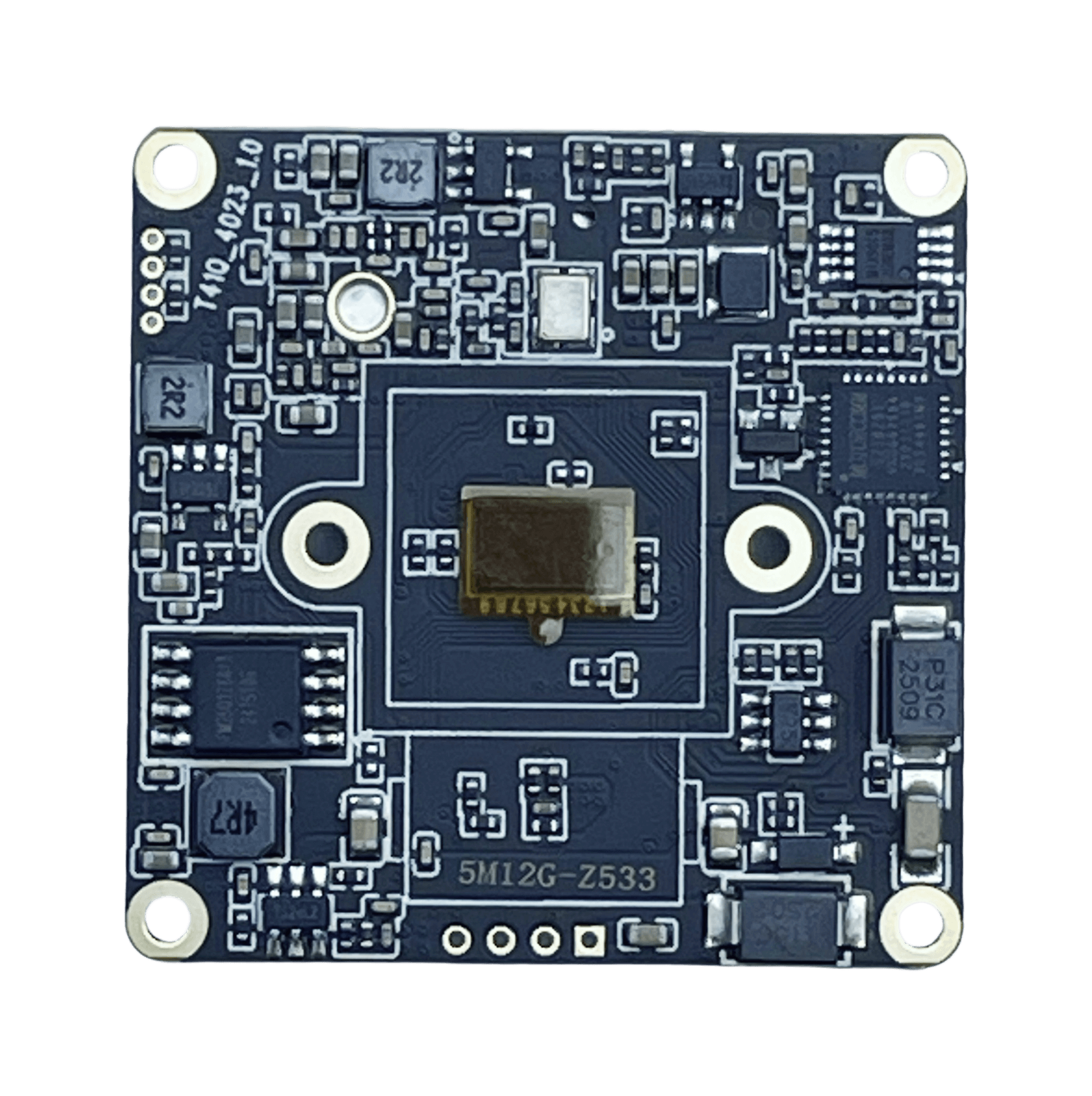

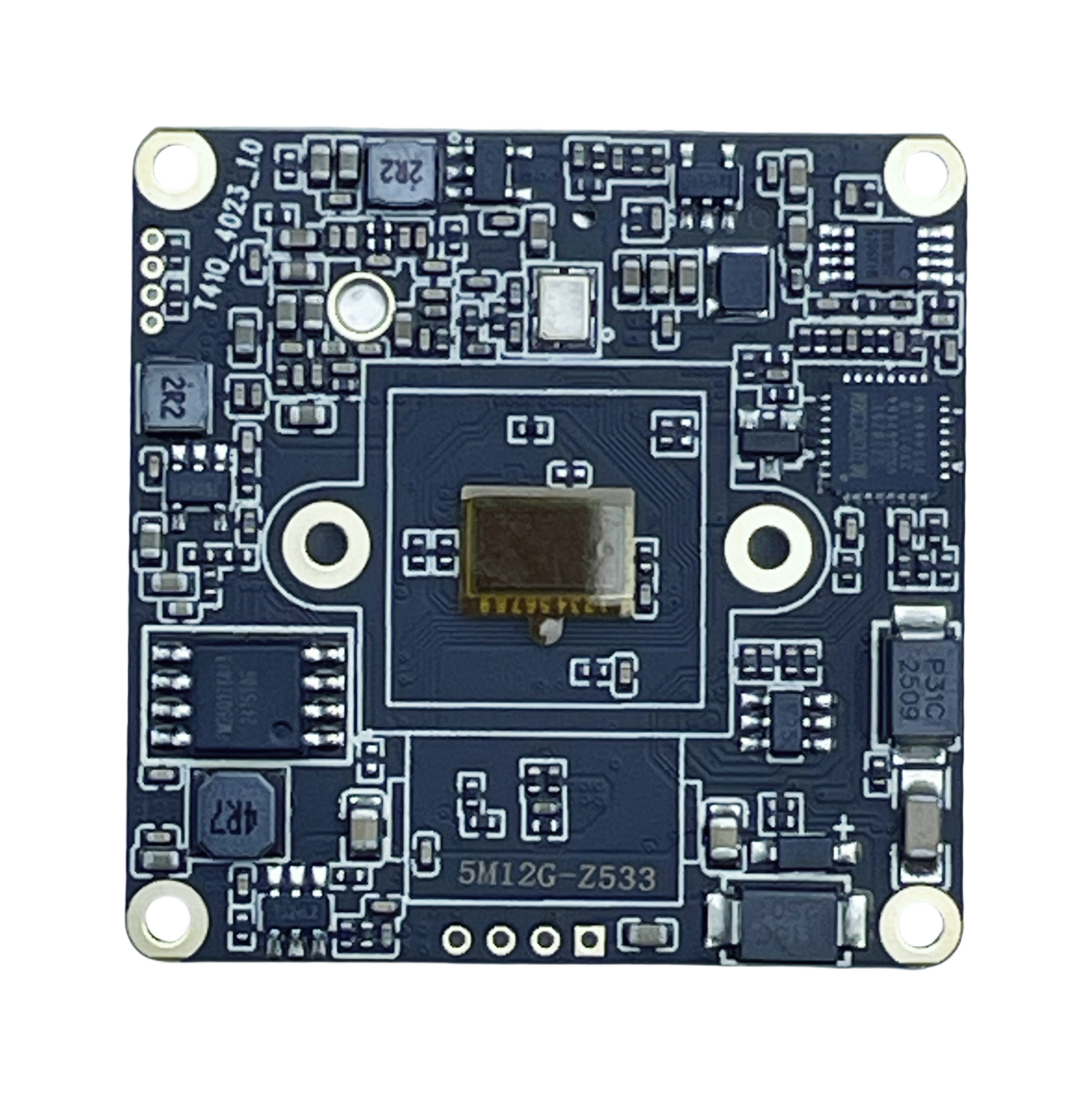

1.Apperance
2.Brief introduction
The 5MP low lux HD camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support ONVIF, support RTSP, support alarm pictures upload to FTP server and remote monitoring with mobile phones.
3.Main characteristics
Ø High sensitivity, high S/N CMOS image sensor
Ø Using Ingenic T41NQ
Ø The highest pixel can reach 500W, and the highest resolution can reach (2880x1620)
Ø H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring
Ø Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on.
Ø Support ONVIF protocol
Ø Support manufacturer DDNS and third-party DDNS
Ø Support sending alarm images via email
Ø Support uploading alarm pictures and alarm videos to FTP server
Ø Support timed capture of images to FTP server
Ø Support both static IP and dynamic IP (DHCP)
Ø Support P2P Plug and Play
Ø Support IE, Google, and Firefox browsers
Ø Support up to 6 users browsing simultaneously (3 users per stream)
Ø Provide motion detection alarm function (area, sensitivity can be set)
Ø Support humanoid recognition, vehicle recognition, and pet recognition
Ø Support Micro SD card, Max 128GB Micro SD card
Ø Support APP downloading and replaying SD card recordings
Ø Support alarm recordings upload to cloud (requires to purchase cloud storage package)
4.Parameter
| HX9101S-5M12G-38-B | |
| operating system | Embedded LINUX |
| main processor | Ingenic T41NQ |
| image sensor | 1/2.7”CMOS sensor |
| IRCUT | support |
| Compression standard | |
| Video compression algorithm | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
| Audio compression algorithm | G.711 |
| Compressed transmission stream | 32Kbps-6144bps, can self-defining, default 960Kbps |
| Image | |
| Maximum image size | 500W(2880x1620) |
| definition | First stream: 500W(2880x1620)，400W（2560x1440） |
| Second stream: 800x600，640x480，800x480、640x352 | |
| Video frame rate | 12.5fps(50HZ), 15fps(60HZ) |
| Character overlay | Support OSD name, time and date information overlay |
| Image Settings | Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable |
| Network function | |
| Storage function | Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud server (requires purchase of cloud storage package) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| Alarm linkage | Send pictures of the alarm to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server; support alarm pictures and videos to TF card |
| Network Protocol | Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
| Access Protocol | Support ONVIF 2.4 protocol |
| Interface | |
| Audio input | 1CH input, support MIC input |
| Audio output | 1CH output, support connecting headphones or amplifiers |
| network interface | 10Base-T/100Base-TX Ethernet interface |
| WiFi 802.11b/g/n Wireless network interface | |
| General specifications | |
| Size | (length, width）38x38 |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power Supply | DC12V 2A |
| Power consumption | 1.5W |

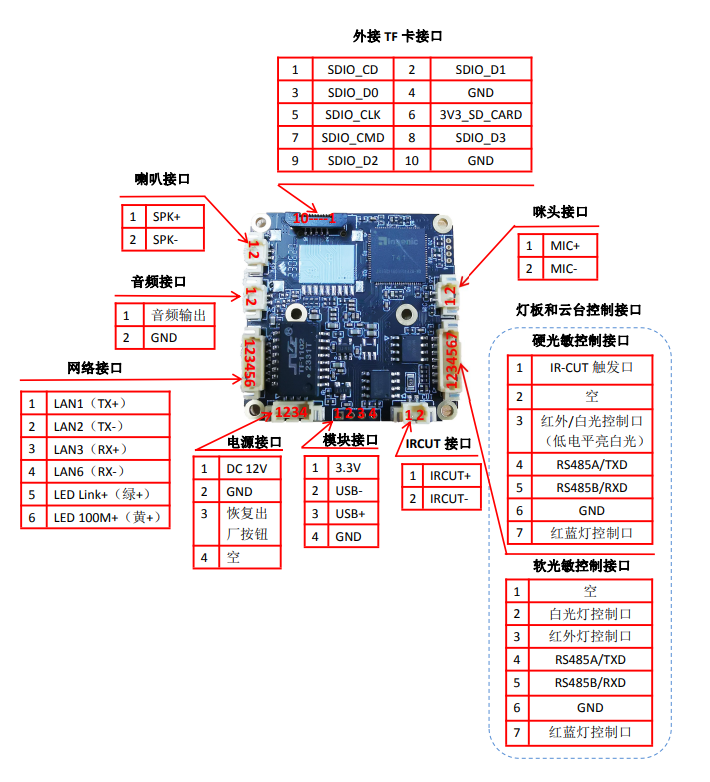

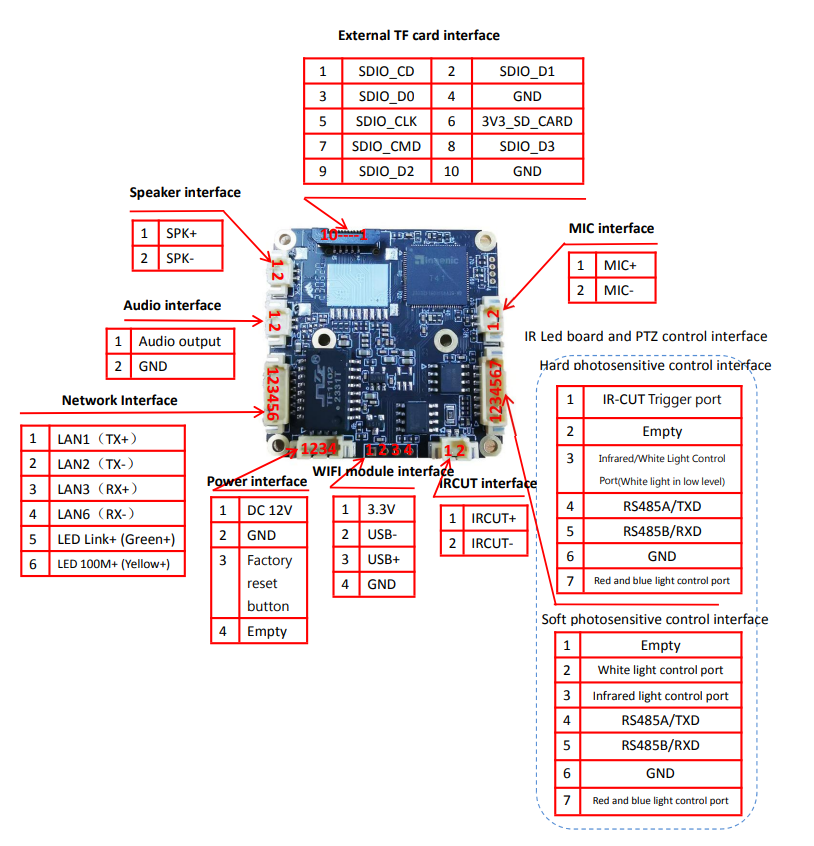

5.Wiring Definition
