2MP Integrated Module
2MP Integrated Module
HX4201SW4-1080M5A-MF

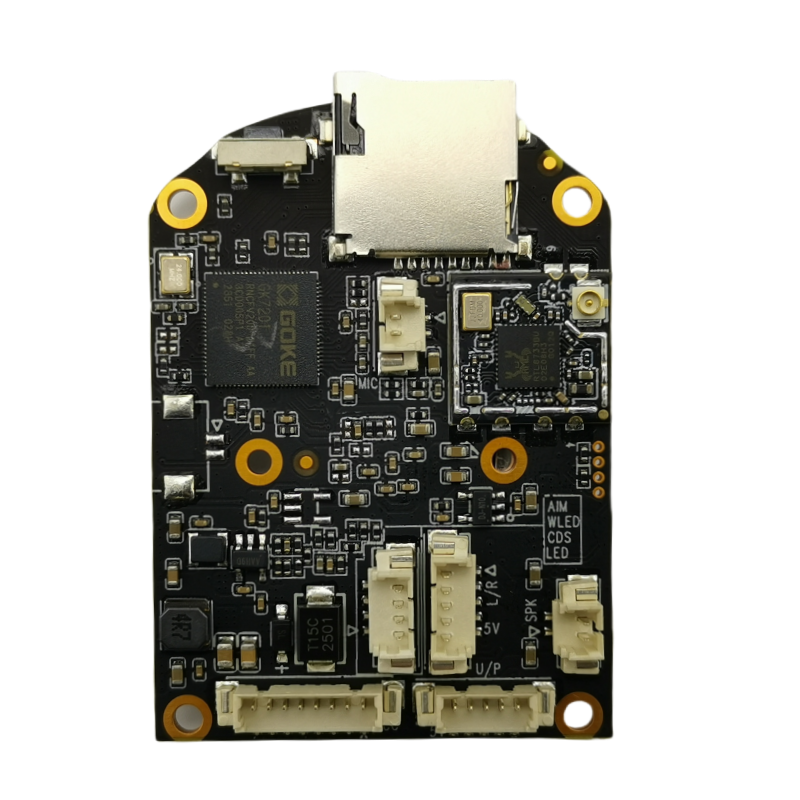

1.Appearance
2.Brief introduction
The 2MP Low lux HD integrated camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.264 and H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
3.Main characteristics
Ø High sensitivity, high S/N CMOS image sensor
Ø Using HK7201V200
Ø The highest pixel can reach 200W, and the highest resolution can reach (1920x1080)
Ø Default is H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring
Ø Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on.
Ø Support ONVIF protocol
Ø Support manufacturer DDNS and third-party DDNS
Ø Support sending alarm images via email
Ø Support uploading alarm pictures and alarm videos to FTP server
Ø Support timed capture of images to FTP server
Ø Support both static IP and dynamic IP (DHCP)
Ø with a built-in amplifier chip, it can be connected to speaker directly
Ø Support IE, Google, and Firefox browsers
Ø Support up to 6 users browsing simultaneously (3 users per stream)
Ø Provide motion detection alarm function (area, sensitivity can be set)
Ø Support Micro SD card, max 128GB Micro SD card
Ø Support mobile phone downloading and playback SD card recordings
4.Parameter
| HX4201SW4-1080M5-MF-B | |
| operating system | Embedded LINUX |
| main processor | GK7201V200 |
| image sensor | 1/3”CMOS sensor |
| IRCUT | support |
| Compression standard | |
| Video compression algorithm | Support H.265, H.264 High Profile,H.264 Main Profile and H.264 Baseline |
| Audio compression algorithm | G.726/G.711 |
| Compressed transmission stream | 32Kbps-6144bps, can self-defining, default 1280Kbps |
| Image | |
| Maximum image size | 200W(1920x1080) |
| definition | First stream: 200W（1920x1080） |
| Second stream: 640x352 | |
| Video frame rate | 200W 20fps(50HZ), 20fps(60HZ) |
| Character overlay | Support OSD name, time and date information overlay |
| Image Settings | Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable |
| Network function | |
| Storage function | Support Max 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload to cloud (requires to purchase cloud storage package) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| Alarm linkage | Send alarm pictures to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server |
| Network Protocol | Support TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP |
| Access Protocol | Support ONVIF 2.4 protocol |
| Interface | |
| Audio input | 1CH Input, support MIC input |
| Audio output | 1CH Output, used with an 8-ohm speaker |
| Network interface | 10Base-T/100Base-TX Ethernet interface |
| WiFi 802.11b/g/n Wireless network interface | |
| General specifications | |
| Size | 38x54x9mm (length, width and height) |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power Supply | DC12V 2A |
| Power consumption | 1.5W |

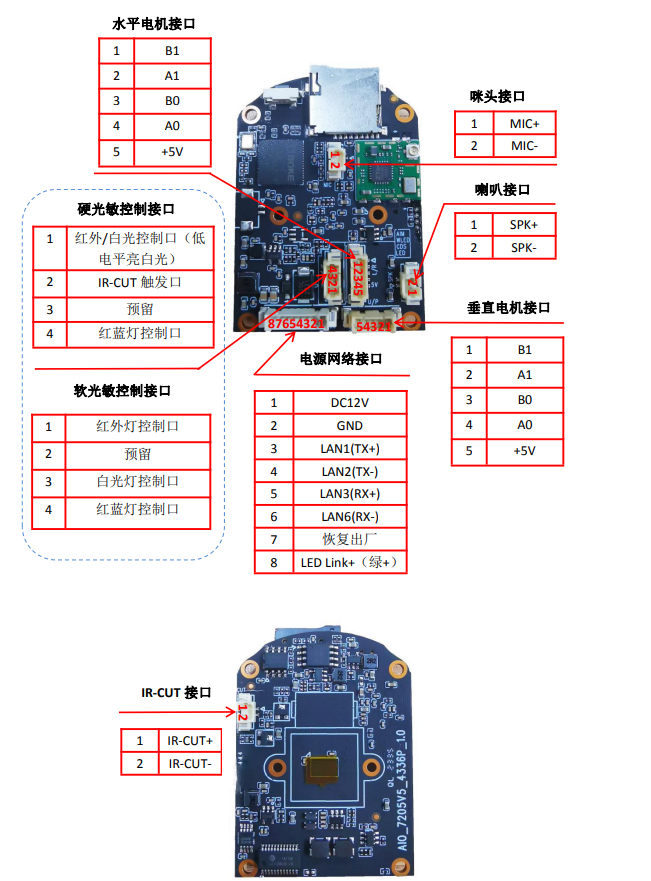

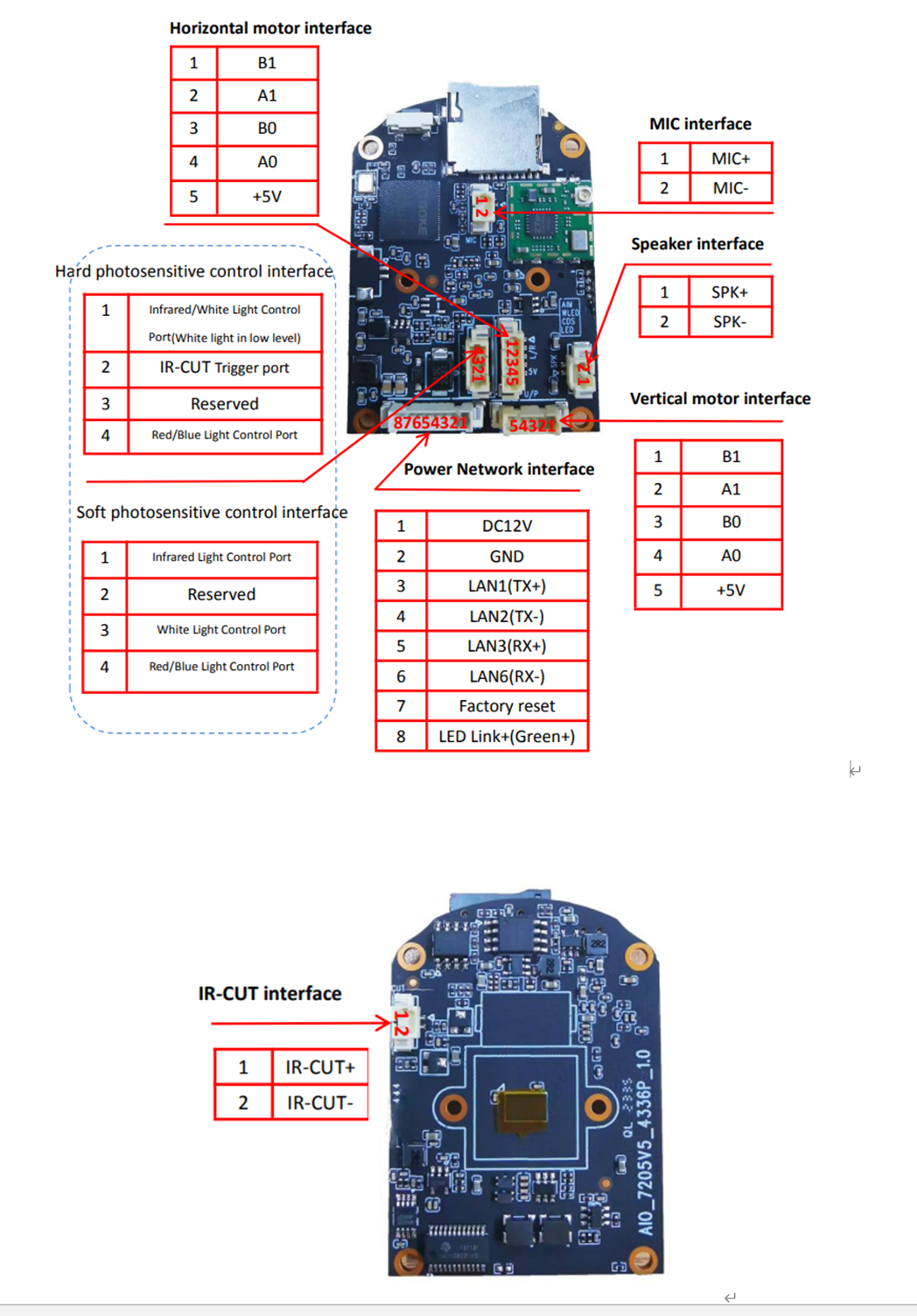

5.Wiring Definition
