4K-AOV WiFi Dome Module

4K AOV Intelligent Dual-Light Dome Module

HX6301SW5-4K-AOV-LITE-MF-B

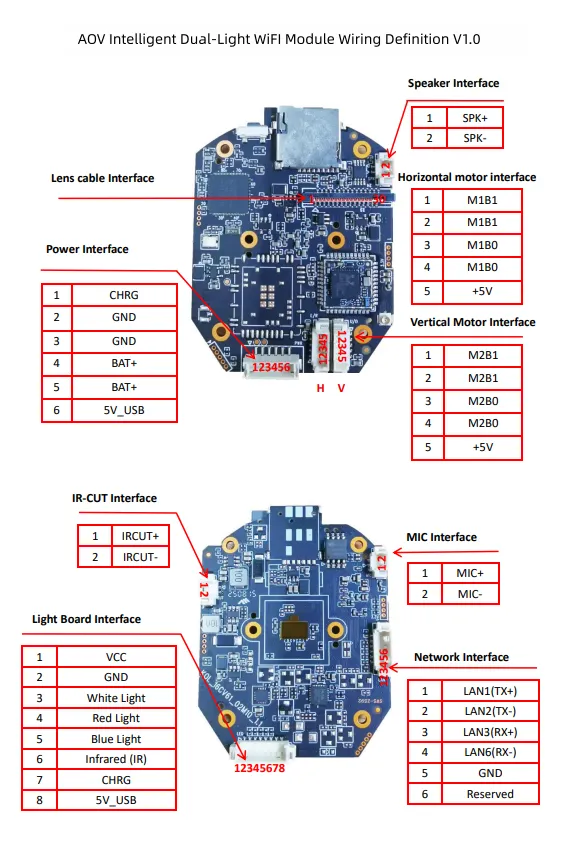

1、Appearance

2、Introduction

The 8MP AOV intelligent dual-light module, featuring an embedded LINUX system and a 8MP low-light sensor, delivers a max resolution of 3840x2160. It supports H.265/G.711 encoding and customizable bitrates. In AOV mode, it records at 1fps or 0.5fps (0.22W power), switching to 15fps under full activation. Storage options include TF cards, FTP server and cloud storage, with two-way audio and optional Dual-band Bluetooth WiFi(2.4G/5.8G).

Equipped with human detection, and detection up to 30 meters. Intelligent dual-light, it automatically activates infrared monitoring in AOV mode at night, switching to warm light full-color imaging with full frame rate upon target detection.

3、Main Characteristics

8MP (3840 x 2160) High sensitivity, high S/N 1/2.7” CMOS image sensor.

H265 compression algorithm, support dual stream.

Enable mobile phone monitoring with CamHipro and show battery stats on APP.

Support multiple network protocols: TCP/IP,HTTP,TCP,FTP,UDP,ARP,DHCP,DNS ,etc.

Support Human Detection Alarm(max 30m Range) and human tracking.

Support alarm recording to TF card(128G) /FTP server or cloud storage (requires purchasing).

Supports AOV mode recording with 1fps or 0.5fps.

Supports 5-user simultaneous browsing at most.

Support mobile phone downloading and playback TF card recordings.

Supports Bluetooth network configuration

Supports customizable detection zones and human-form sensitivity settings.

Supports Dual-band Bluetooth WiFi(2.4G/5.8G).

4、Parameter
